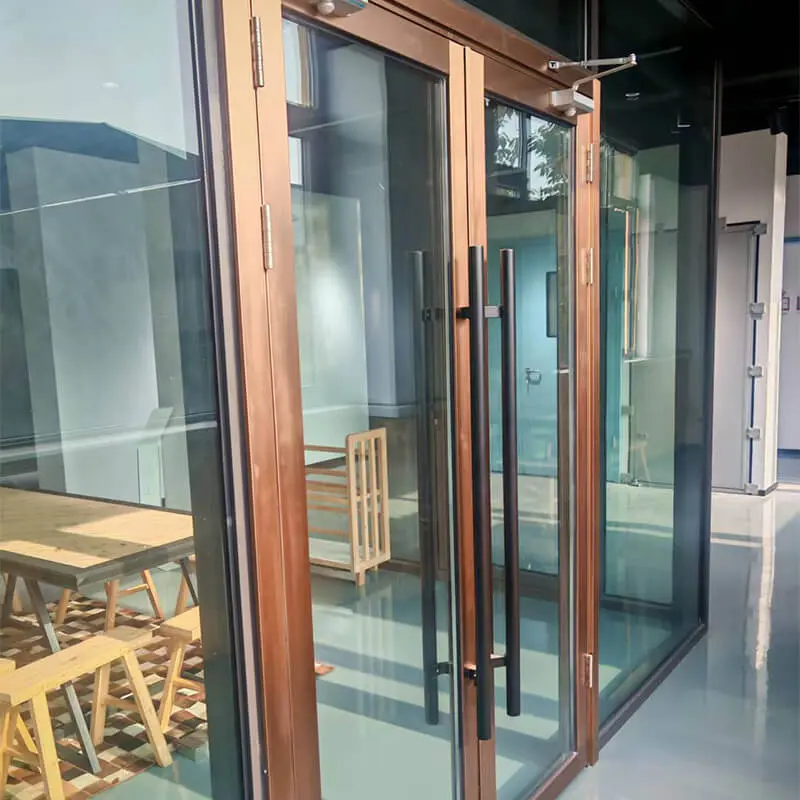

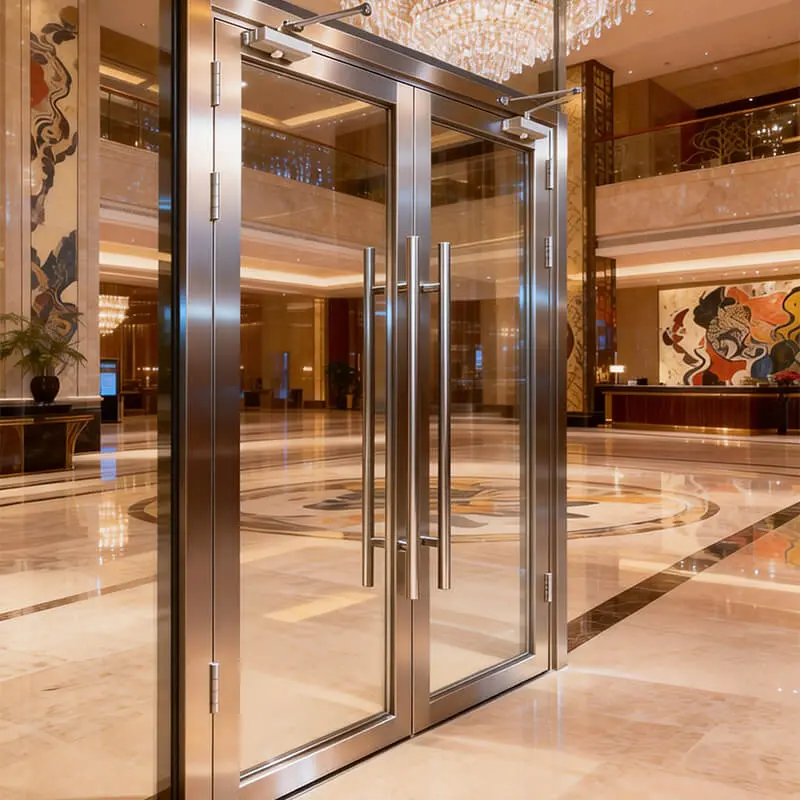

Stainless Steel Glass Fire Rated Door
Product Features
Fire Resistance Performance
The door leaf is filled with our self-developed fire-resistant core material, while an intumescent fire-sealing strip between the door frame and the leaf expands under high temperatures to block flame penetration. This structure ensures the steel fire-rated door maintains its thermal insulation performance and meets fire resistance requirements across all rating levels.
Smoke Sealing
The door gap is precisely controlled within 1–3 mm and paired with a door closer to ensure the door remains closed. The fire-sealing strip stays flexible at normal temperatures and expands under heat to tightly seal gaps, effectively preventing the spread of toxic smoke.
Durability & Strength
Constructed from high-grade 304 stainless steel, both the frame and door leaf offer superior corrosion and wear resistance, standing up to humidity, heat, and harsh environments. The reinforced door structure provides excellent impact resistance and long-term stability — resisting deformation or cracking without frequent maintenance — ensuring durability and safety over years of use.
Aesthetic Appearance
It retains metallic properties while conveying natural textures, and can even be customized with special tones (such as bronze, black plating) according to requirements, breaking the single tone of traditional stainless steel and creating an echo or contrast with the main color of the space. The glass has excellent light-gathering performance, enabling our stainless steel glass fire-resistant doors to fit diverse styles such as modern and minimalist, and integrate both lighting function and design sense.
Installation & Maintenance
The frame is fixed with expansion bolts, and the gap between the frame and wall is filled with cement mortar for stability. Routine maintenance is simple—regularly check the hardware for flexibility, clean the sealing strips, and replace any damaged components individually—ensuring a longer service life for the steel fire-rated door.
Fire Rating
Grade C
Fire integrity ≥ 30 minutes, fire insulation ≥ 30 minutes;
Suitable for secondary fire protection areas such as pipe shafts and cable shafts, mainly used to block the spread of small fires.
Grade B
Fire integrity ≥ 60 minutes, fire insulation ≥ 60 minutes;
Suitable for areas with moderate fire protection requirements such as stairwells, antechambers, and evacuation routes.
Grade A
Fire integrity ≥ 90 minutes, fire insulation ≥ 90 minutes;
Suitable for important areas such as fire control rooms, power distribution rooms, rooms with valuable equipment, and fan rooms.
Others
Fire integrity ≥ 120-180 minutes, fire insulation ≥ 120-180 minutes;
Suitable for areas with ultra-Class A fire protection requirements such as chemical workshops, tunnel escape exits, and arms and ammunition depots.
Application Areas
Industrial Facilities
Public Institutions (Hospitals / Schools)
Commercial Buildings (Offices / Hotels / Residences)
Transportation Hubs (Airports / Rail Stations)
Military and Security Facilities
| Door Frame | 1.2mm ~ 2.0mm 304 Stainless Steel | |
| Interlocking Formed Structure | ||
| Door Leaf | 0.8mm ~ 1.5mm 304 Stainless Steel | |
| Door leaf thickness: 50mm | ||
| Door Leaf Core Material | Magnesium sulfate is used as the filling material for fire doors, and its core advantages are ingeniously embodied in its strong fire and flame-retardant protection, efficient heat insulation for temperature resistance, long-lasting and stable structural performance, as well as green and environmentally friendly safety characteristics | |
| Reinforcement Structure | Thickness ≥ 3.0mm | |
| Product Size & Dimensions | Standard Size for Single Leaf Door: (Width ≤ 1300mm) * (Height ≤ 2700mm) Standard Size for Double Leaf Door: (Width ≤ 2400mm) * (Height ≤ 2700mm) Custom Door Maximum Size: (Width ≤ 4600mm) * (Height ≤ 5000mm) |
|
| Surface Treatment | Brushed Finish：Achieved through mechanical polishing to create fine, parallel grain lines. The texture offers a refined touch, reduces glare, and delivers a subtle, industrial aesthetic. | |
Plating Finish：Options such as copper plating or black coating alter the surface tone, adding a vintage or customized look while enhancing corrosion resistance and durability.
|
||
| Fire-Rated Glass | Nano-Silicon Fire Rated Glass: Thickness 25~35mm, composed of multiple original glass sheets compounded with multiple layers of high-transparency, hard nano-silicon fire-resistant liquid interlayers attached. | |

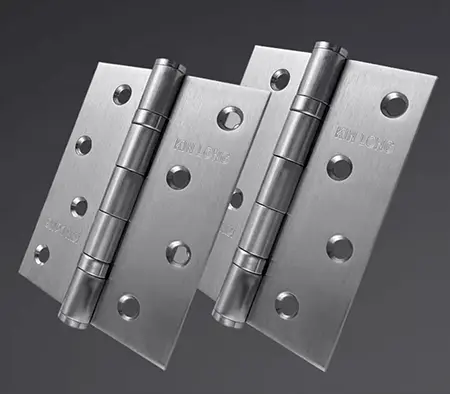

| Hardware Components | 304 Brushed Stainless Steel Hinge: Exposed bearing-type hinges with a load capacity of ≥80 kg per hinge |  |

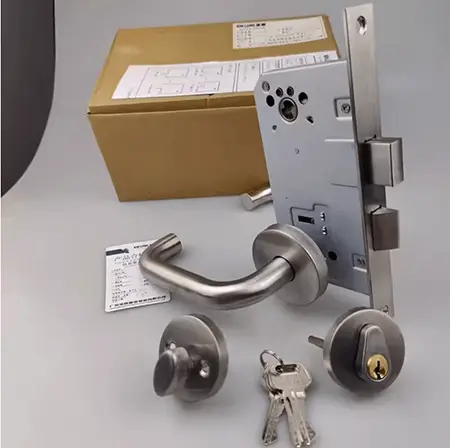

| 304 Brushed Stainless Steel Fire-Resistant Lock: Lever-handle design with fire resistance up to 90 minutes |  |
|

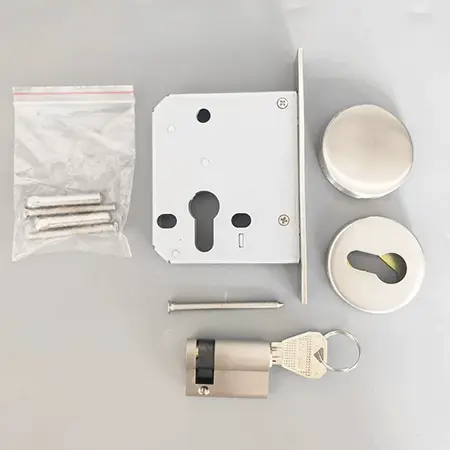

| 304 Brushed Stainless Steel Shaft Lock: Flush-mounted design with an anti-pry structure |  |
|
| 304 Brushed Stainless Steel Panic Bar Lock: Horizontal push-rod design allowing quick evacuation in emergency situations. |  |
|

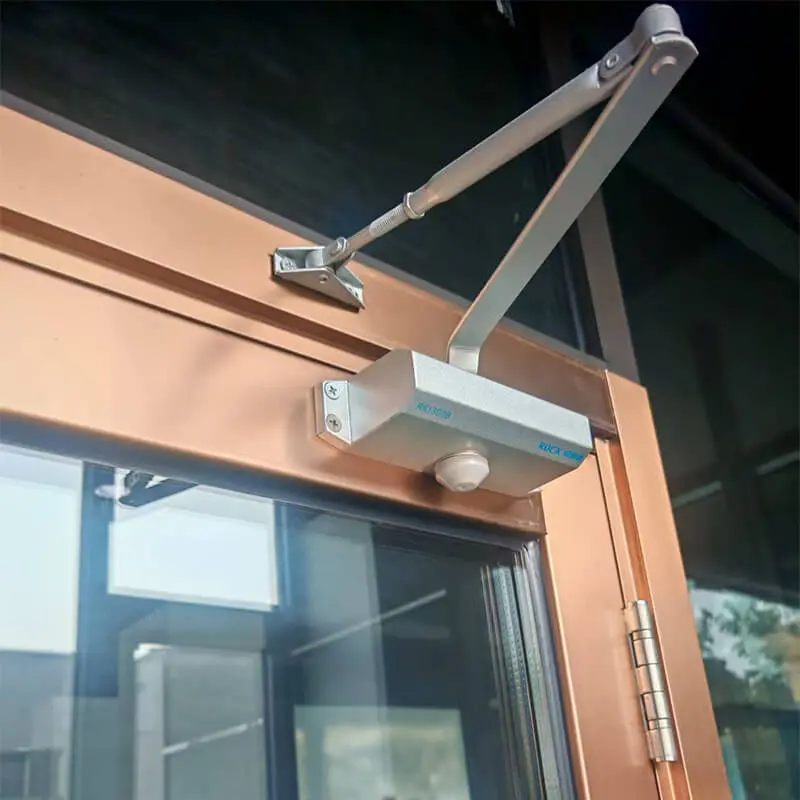

| Door Closer: Hydraulic type with adjustable closing time (3–8 seconds), ensuring the door closes securely and safely. |  |
|

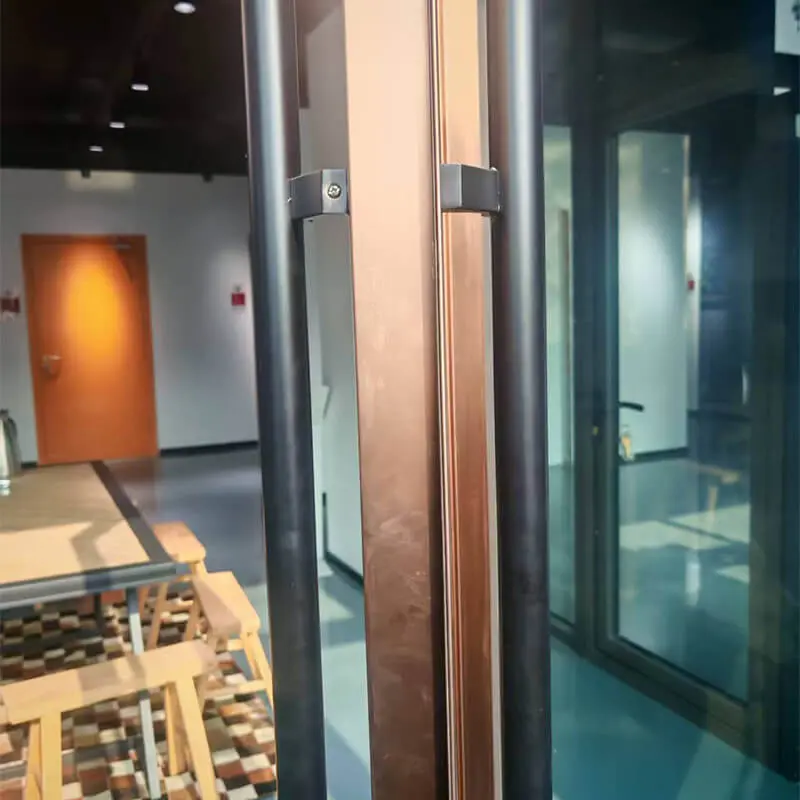

| 304 Stainless Steel Pull Handle: 600mm golden ratio length fits most doors, offering a minimalist, modern look with each push and pull. |  |
|

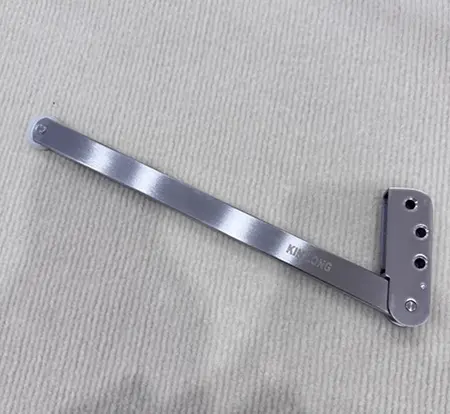

| 304 Brushed Stainless Steel Sequencer: Synchronizes double-leaf doors, ensuring the inactive leaf closes before the active leaf, with a response time ≤0.3 seconds, preventing impact and ensuring proper sealing. |  |
|
| 304 Brushed Stainless Steel Bolt: Provides a locking force ≥300 N, reinforcing the door leaf fixation and improving overall structural integrity. | |

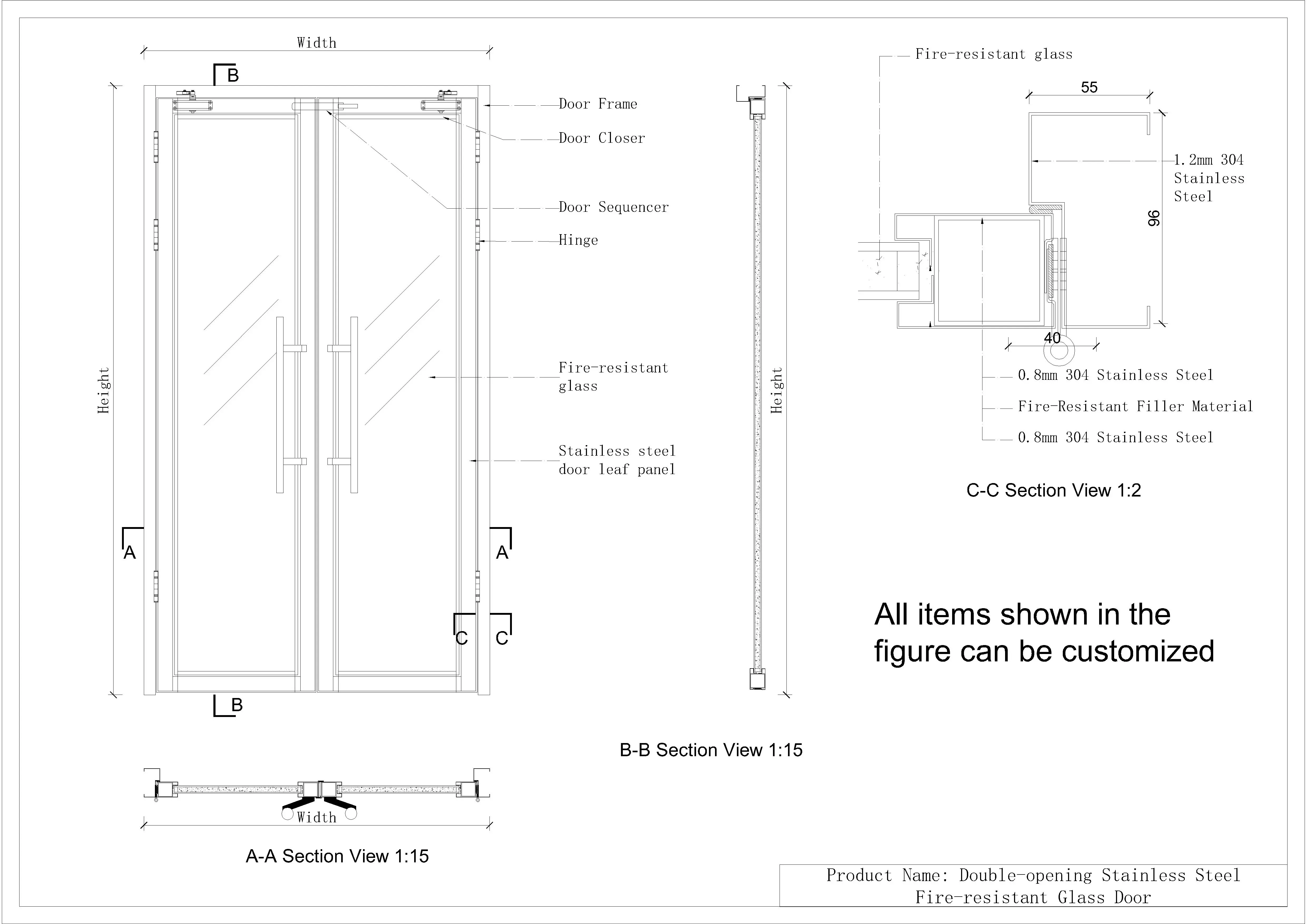

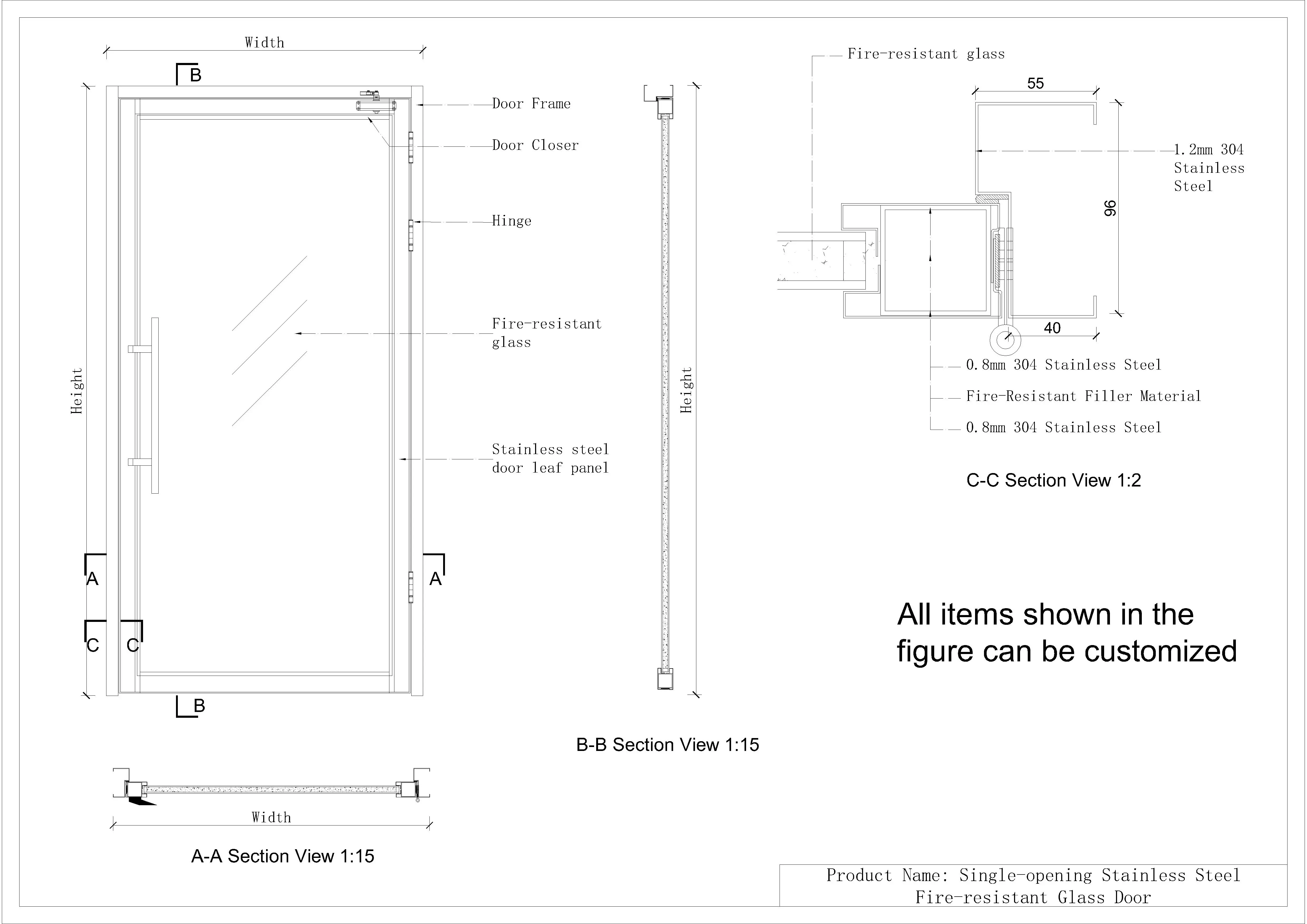

| Door Frame | 1.2mm 304 Stainless Steel |
| Interlocking Formed Structure | |
| Door Leaf | 0.8mm 304 Stainless Steel |
| Fire-Resistant Glass:Nano-Silicon Fire Rated Glass | |
| Thickness of Door Leaf: 50mm | |

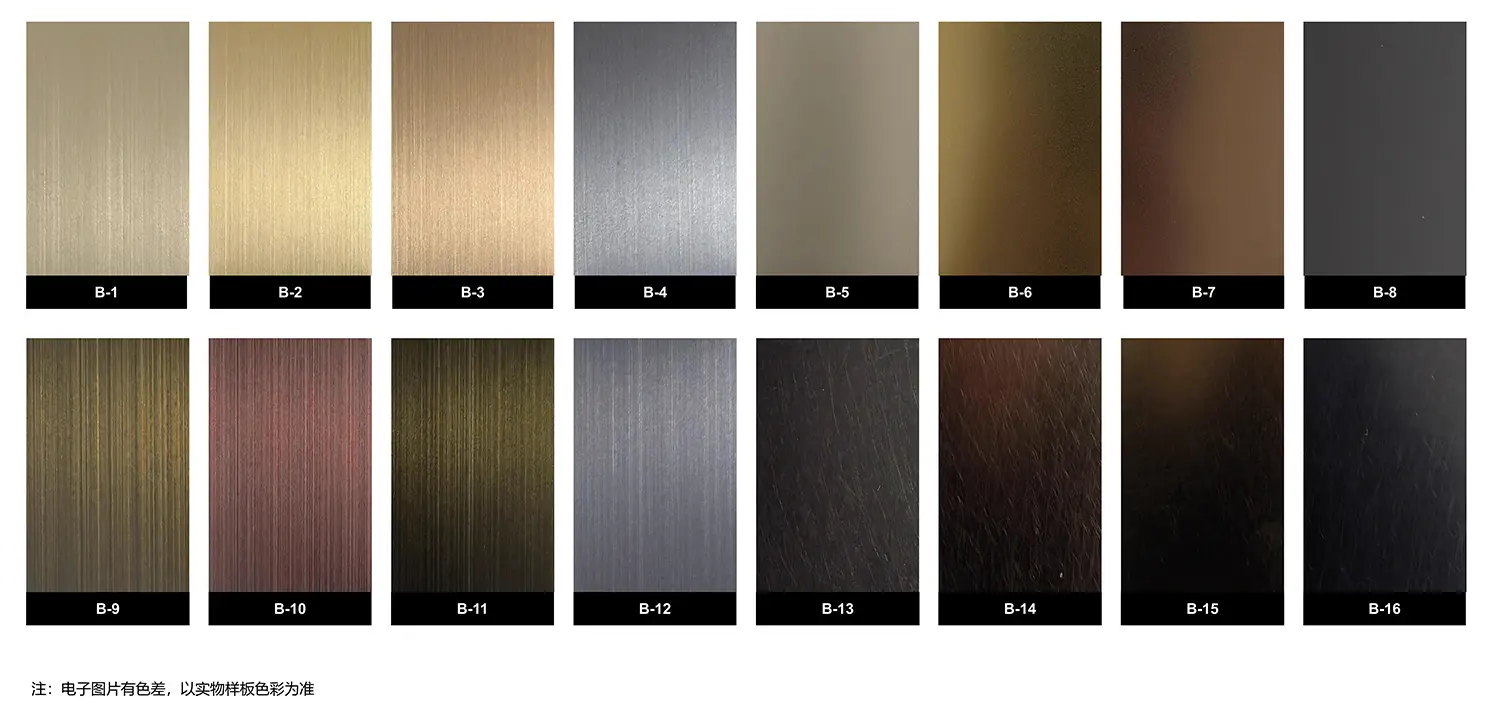

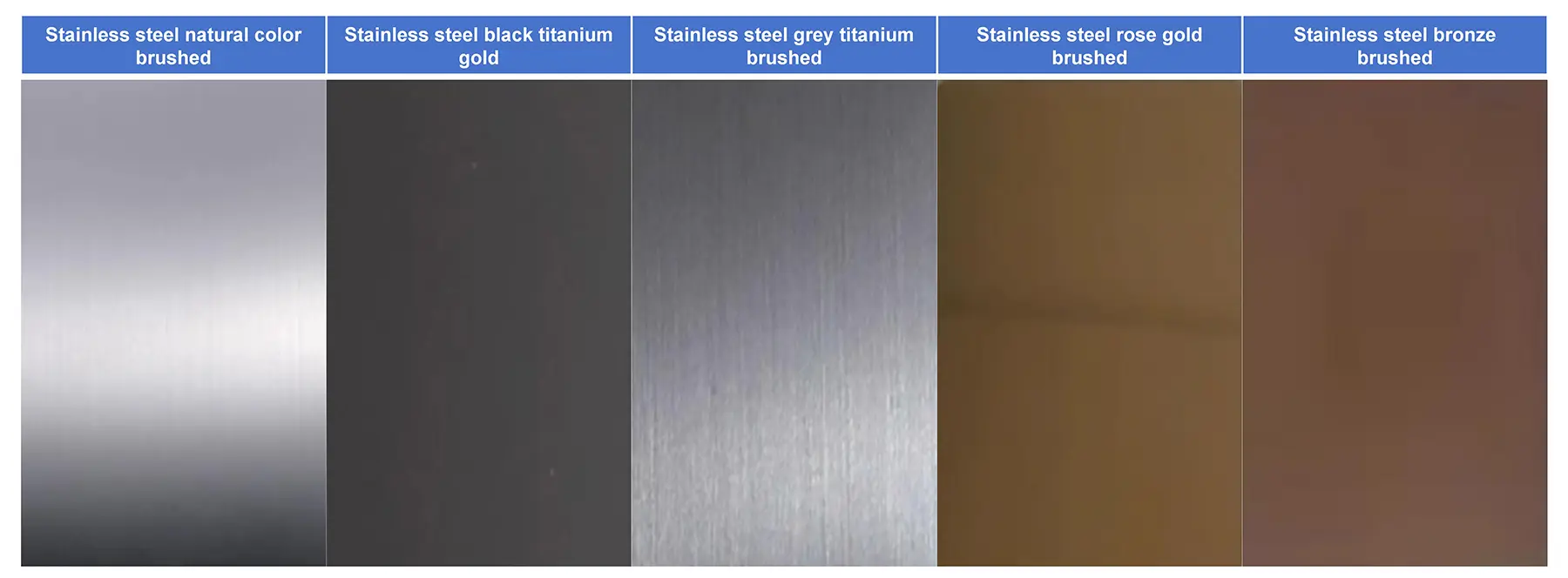

| Colors |  |

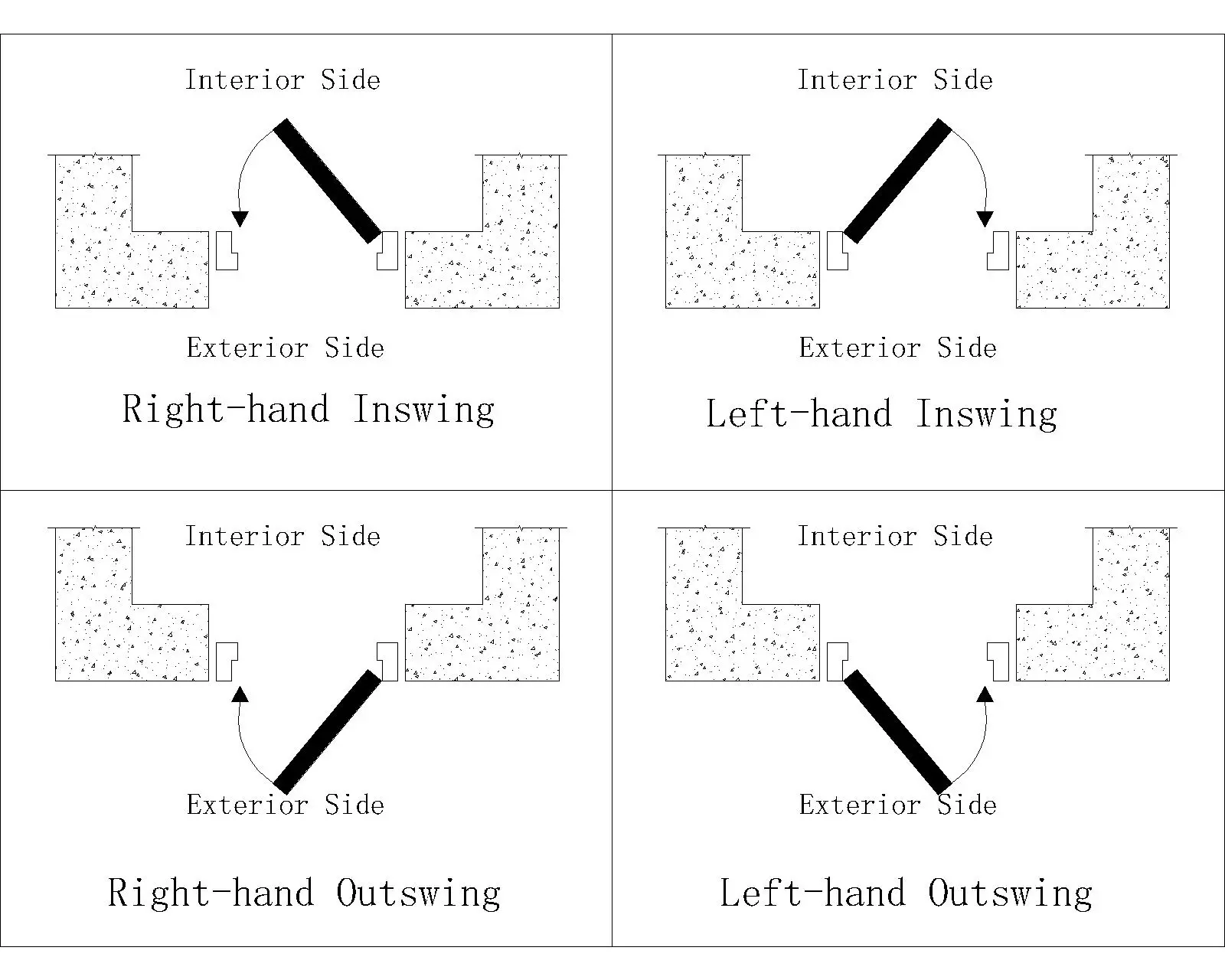

| Opening Method |  |
| Accessory Configuration | Hinges |

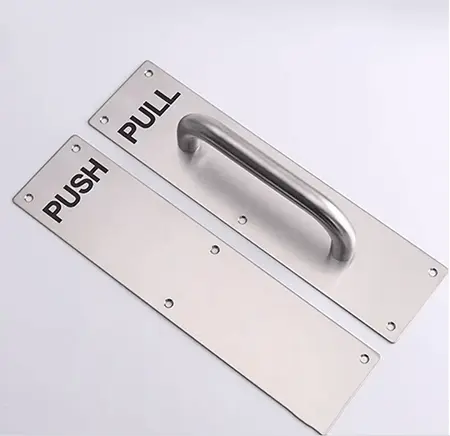

| Pull handle | |

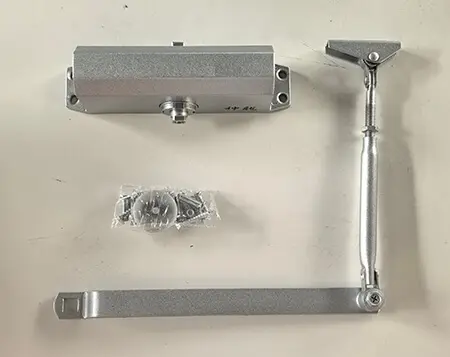

| Door Closers |
All parameters are customized
